Cell Towers operate under demanding conditions. Materials are exposed to continuous strain from the elements. UV exposure, wind-driven vibrations, and flexing put any antenna shroud to the test. It is a given that, over time, structural cracks develop, increasing the risk of catastrophic shroud failure. A falling shroud puts people and property in danger.

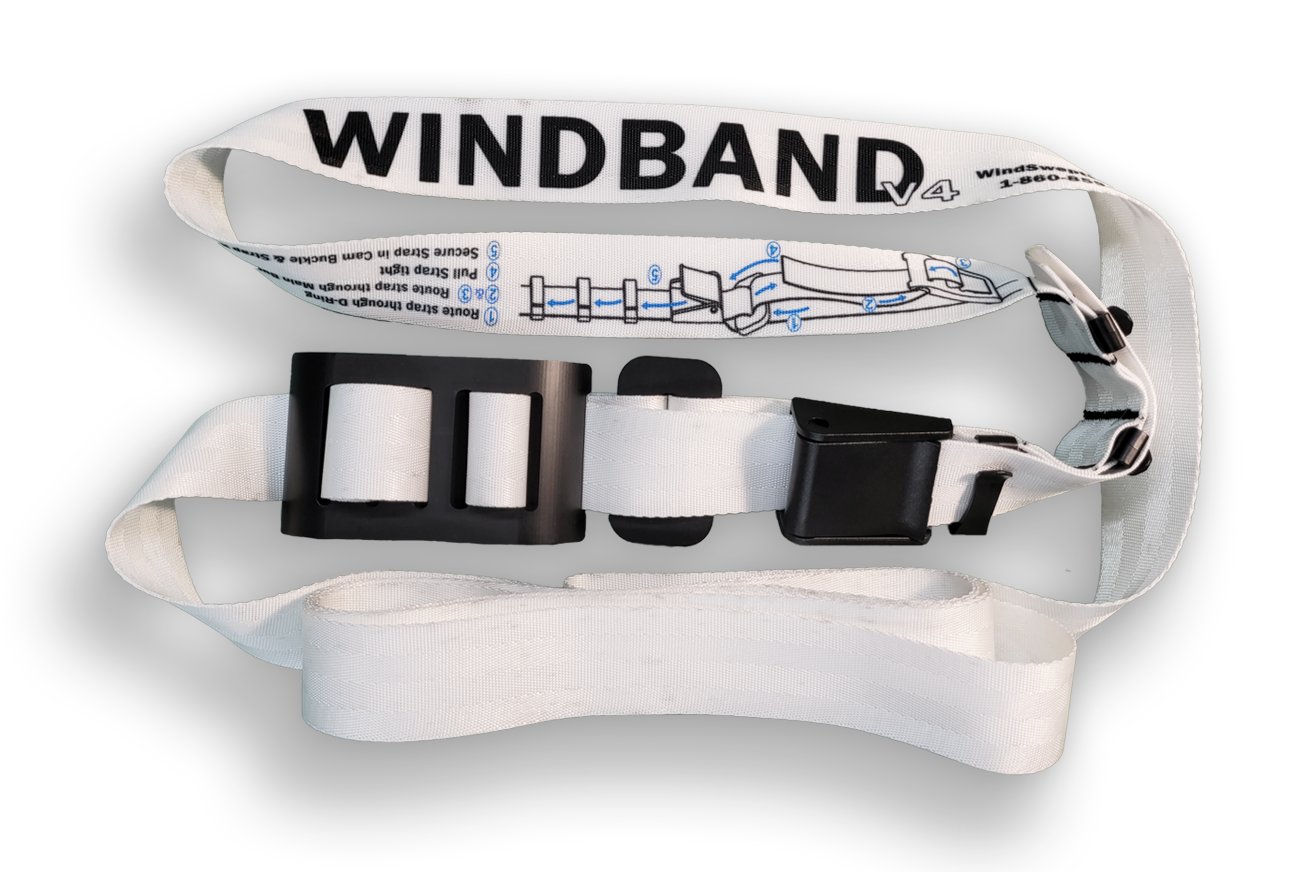

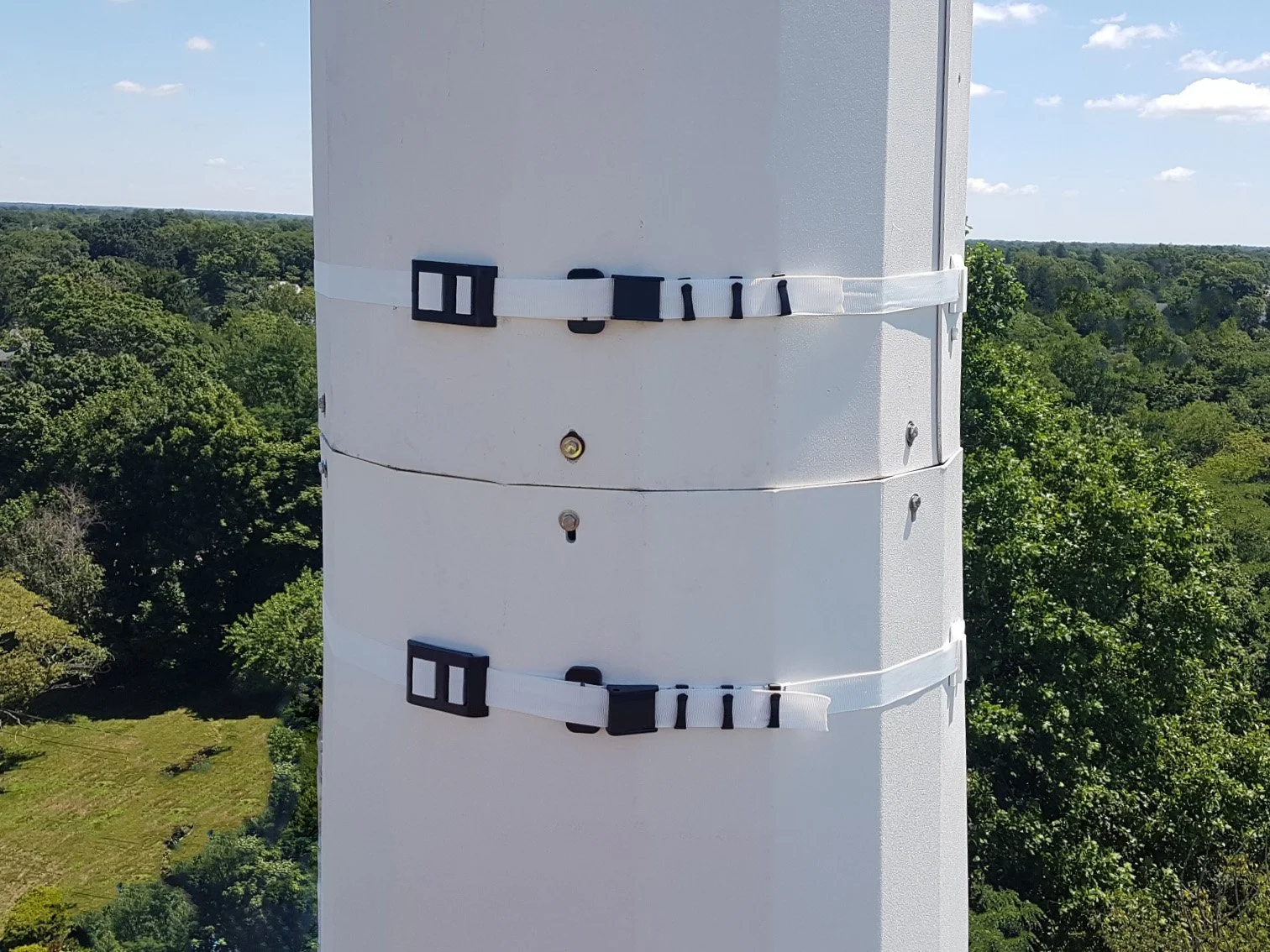

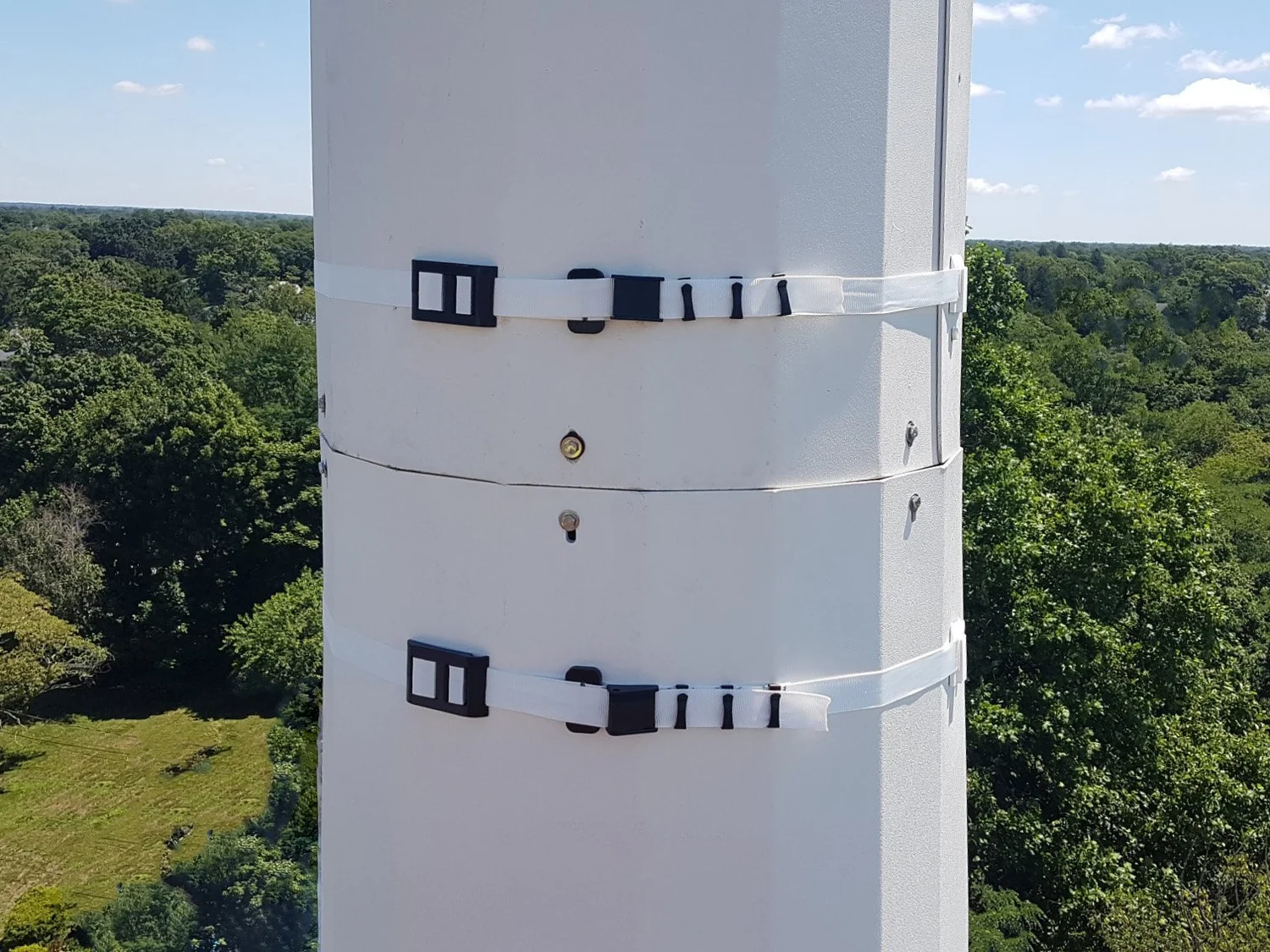

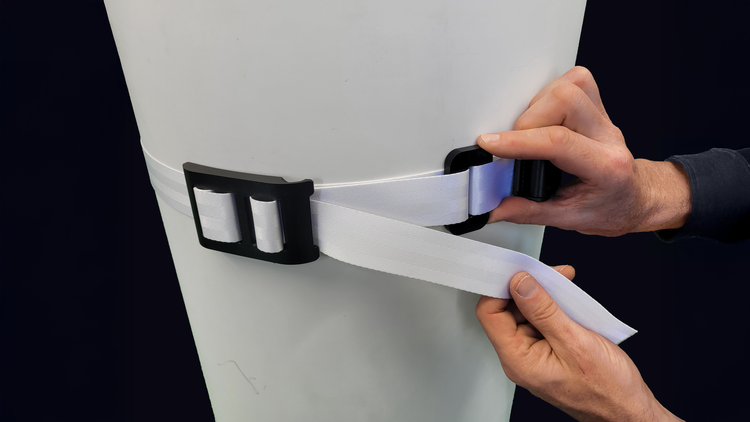

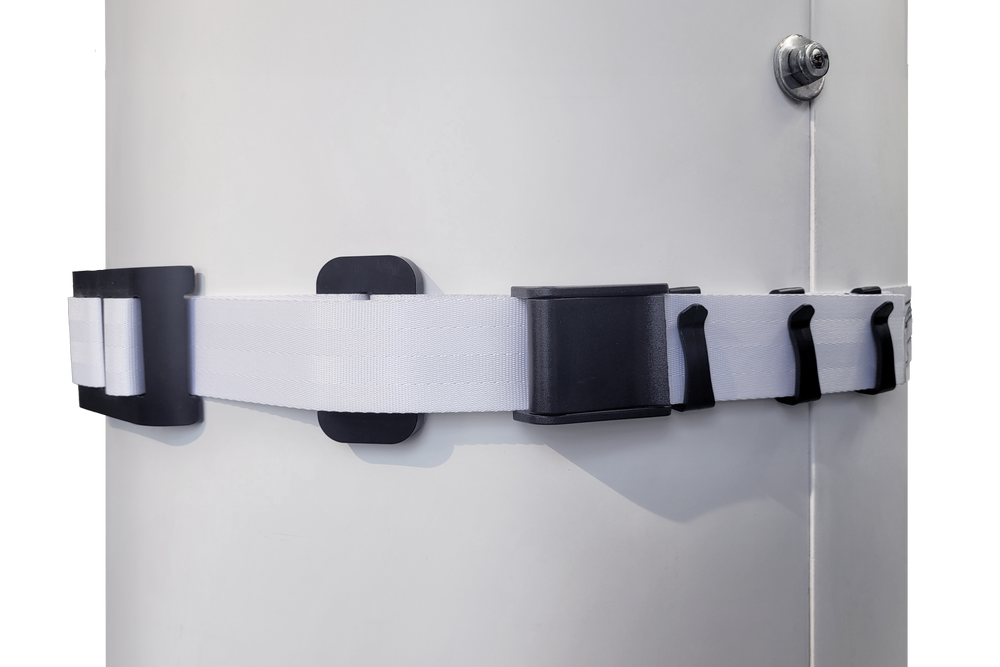

The WindBand provides another line of defense to keep the canisters where they belong—on the tower! It is an engineered solution that uses high-strength and long-lasting materials and is installed in about 3 to 5 minutes. It wraps around the multi-section or cylindrical shroud, keeping it in place when fasteners are left out, when they begin to crack, and under high wind conditions.

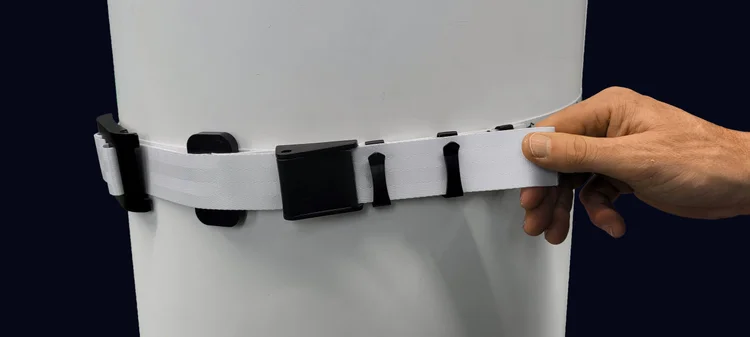

After the initial installation, WindBands take less than a minute to remove or reinstall. Fast, easy and reusable!

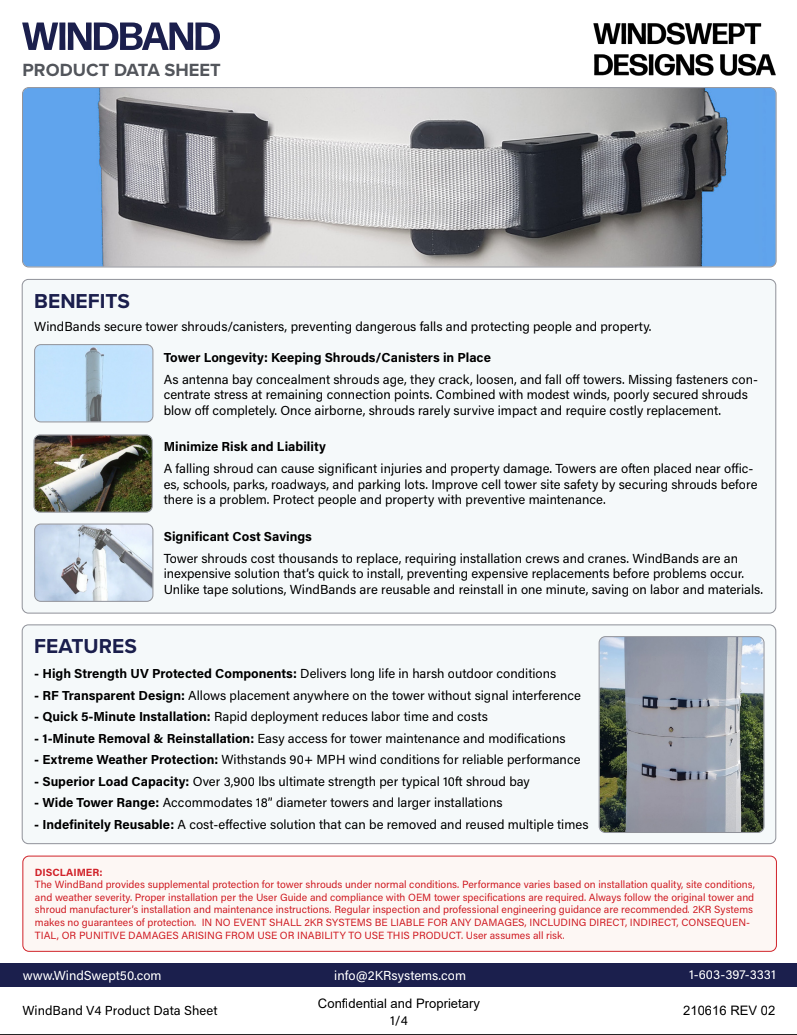

WindBand Product Data Sheet
View PDF
High Strength UV Protected Components: Delivers long life in harsh outdoor conditions
RF Transparent Design: Allows flexible placement anywhere on the tower without signal interference
Quick 5-Minute Installation: Rapid deployment reduces labor time and costs
1-Minute Removal & Reinstallation: Easy access for tower maintenance and modifications
Extreme Weather Protection: Withstands 90+ MPH wind conditions for reliable performance
Superior Load Capacity: Over 3,900 lbs ultimate strength per typical 10ft shroud bay
Wide Tower Range: Accommodates 18" diameter towers and larger installations
Indefinitely Reusable: A cost-effective solution that can be removed and reused multiple times

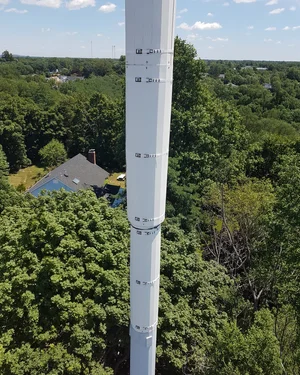

Tower Type: Concealed Array Monopole with Sectional Shrouds
Shroud Type: Sectional Composite, Fiberglass, and Polymer. Also, RadomeFlex, RadomeEvo, and Nello shrouds
Tower Diameter: 18in (46cm) and larger
Load Rating: Designed for 90+ MPH wind speeds*
Ult. Strength: Over 3,900lbs (1770kg) for a typical 10ft antenna shroud bay
Materials: All components are UV protected and RF transparent.
Reusable: After initial sizing to the tower, WindBands can be removed and reattached in about a minute indefinitely.
Placement: Typically 2, 3, or 4 WindBands per antenna shroud bay. See the WindBand Size Calculator.
*Actual performance may vary as multiple factors contribute to the ability to withstand high wind loads.

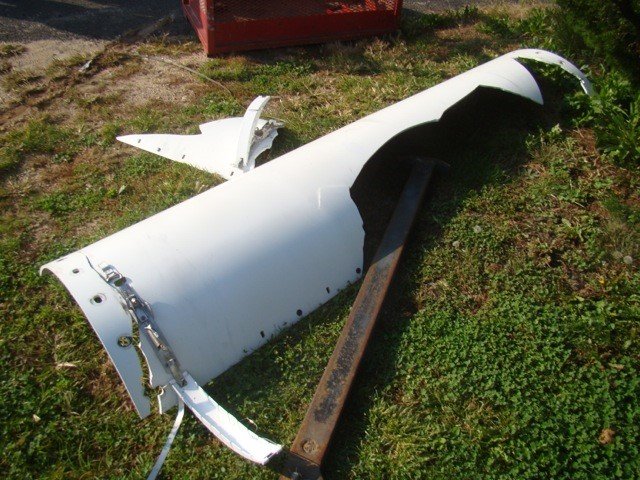

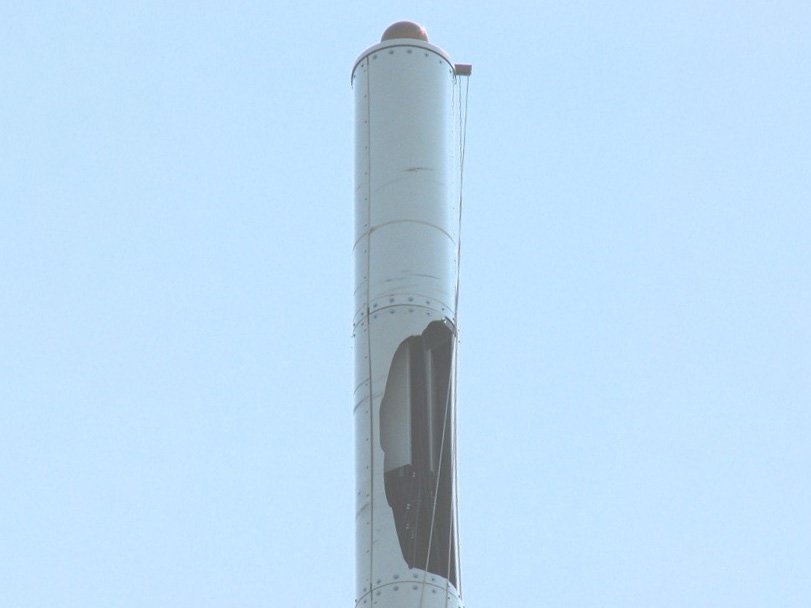

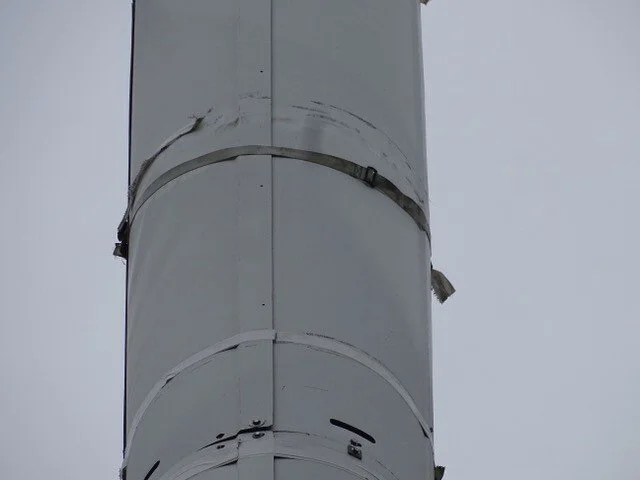

As antenna bay concealment shrouds age, they crack, loosen, and fall off towers. Missing fasteners concentrate stress at remaining connection points. Combined with modest winds, poorly secured shrouds blow off completely. Once airborne, shrouds rarely survive impact and require costly, time-consuming replacement.

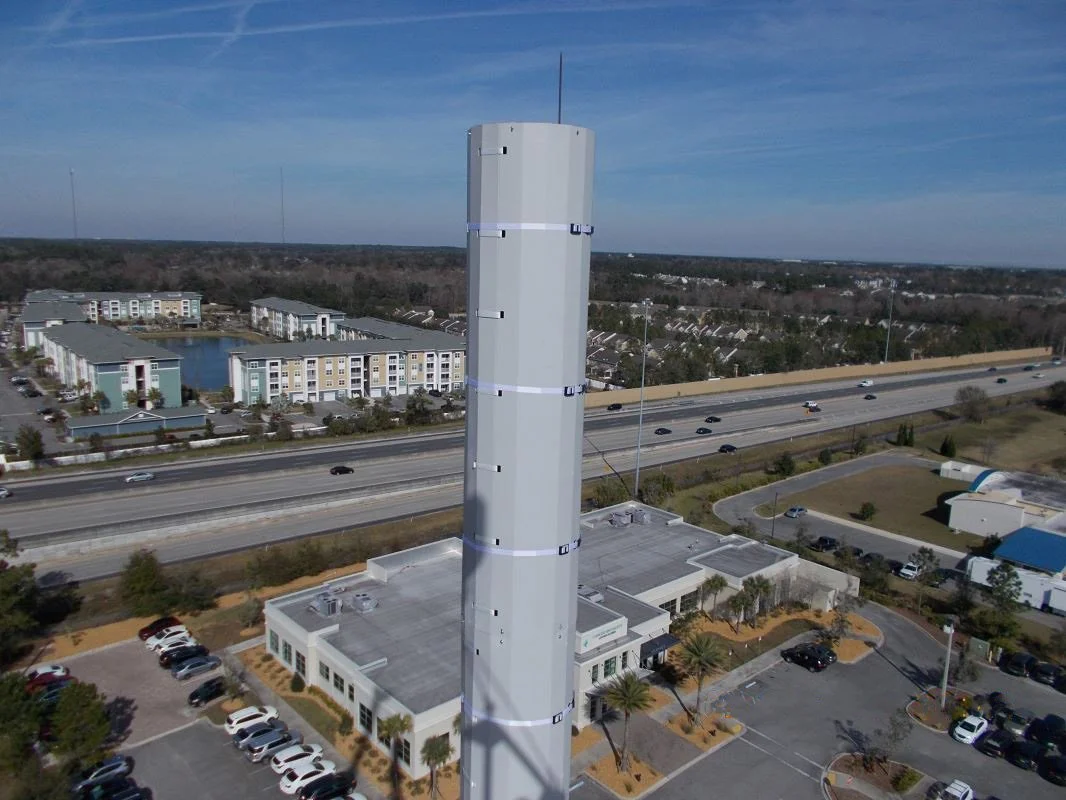

A falling shroud can cause a world of hurt in injuries and property damage. Often, towers are placed near people and property, such as at offices, schools, parks, roadways, highways, and parking lots. Improve cell tower site safety by securing shrouds before there is a problem. Why take a chance?

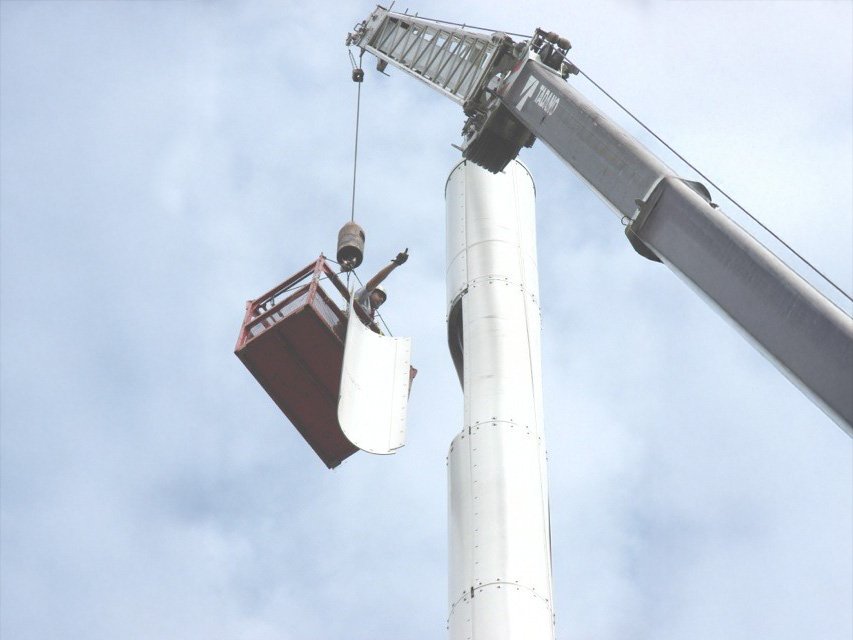

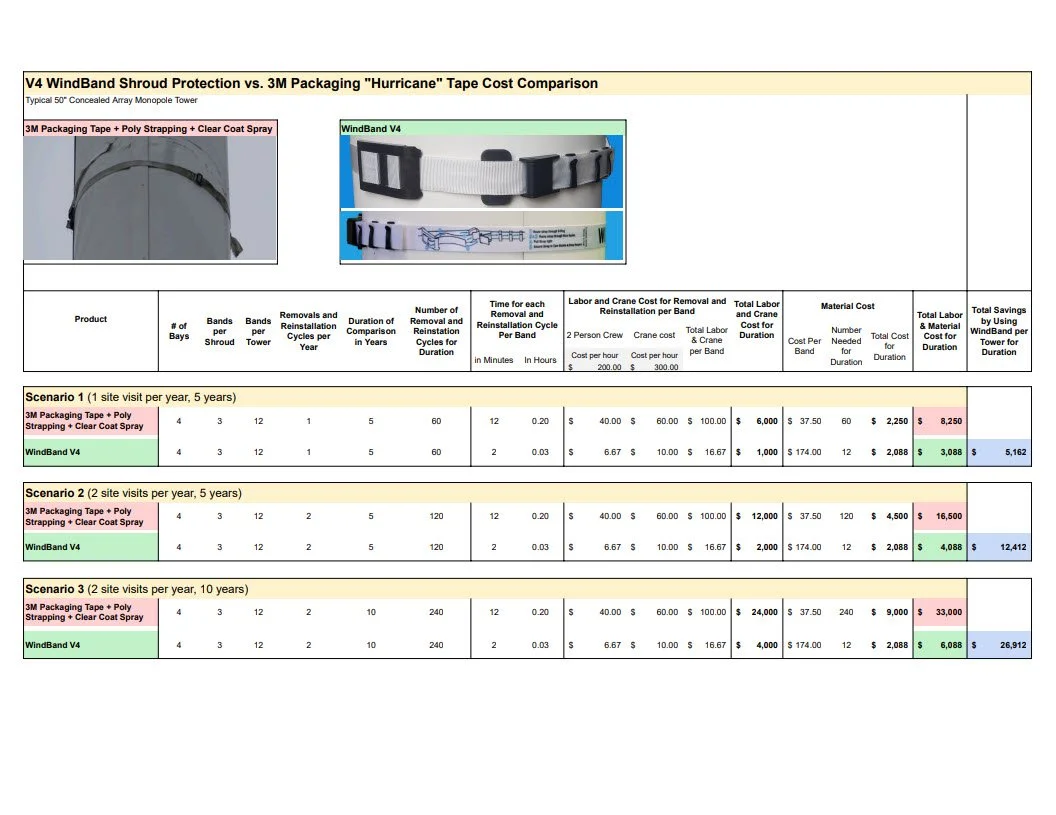

Tower shrouds cost thousands to replace, requiring installation crews and cranes or lifts. Extend shroud life and protect your investment with WindBands, an inexpensive solution that's easy and quick to install, preventing expensive replacements before problems occur.

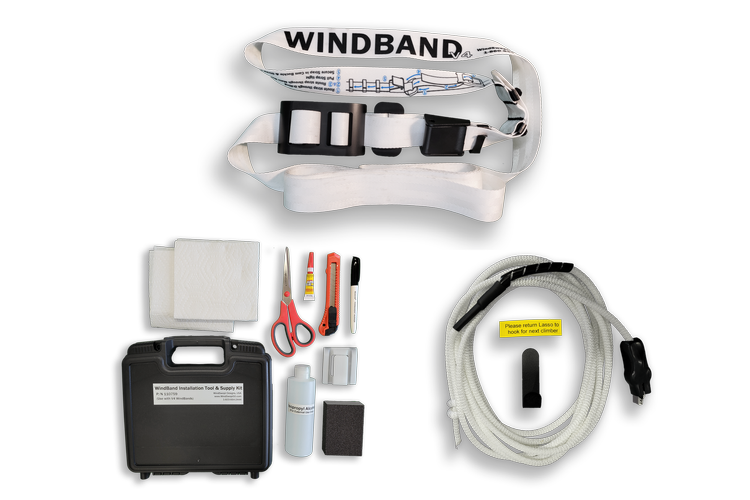

WindBands come complete with Strap Hooks included for immediate installation.

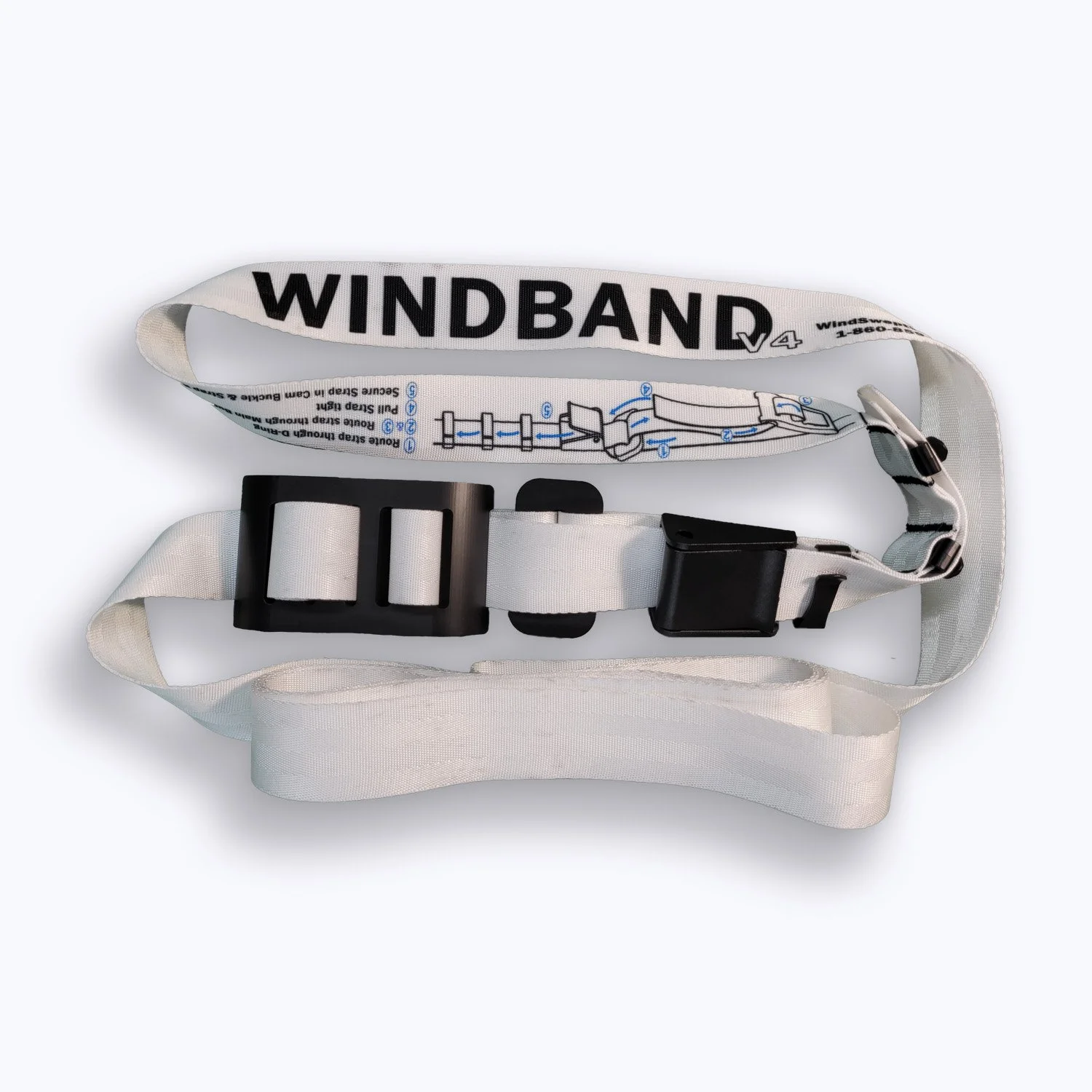

WindBands help keep canisters/shrouds securely in place, reduce the risk and liability of falling debris, and provide significant cost savings.

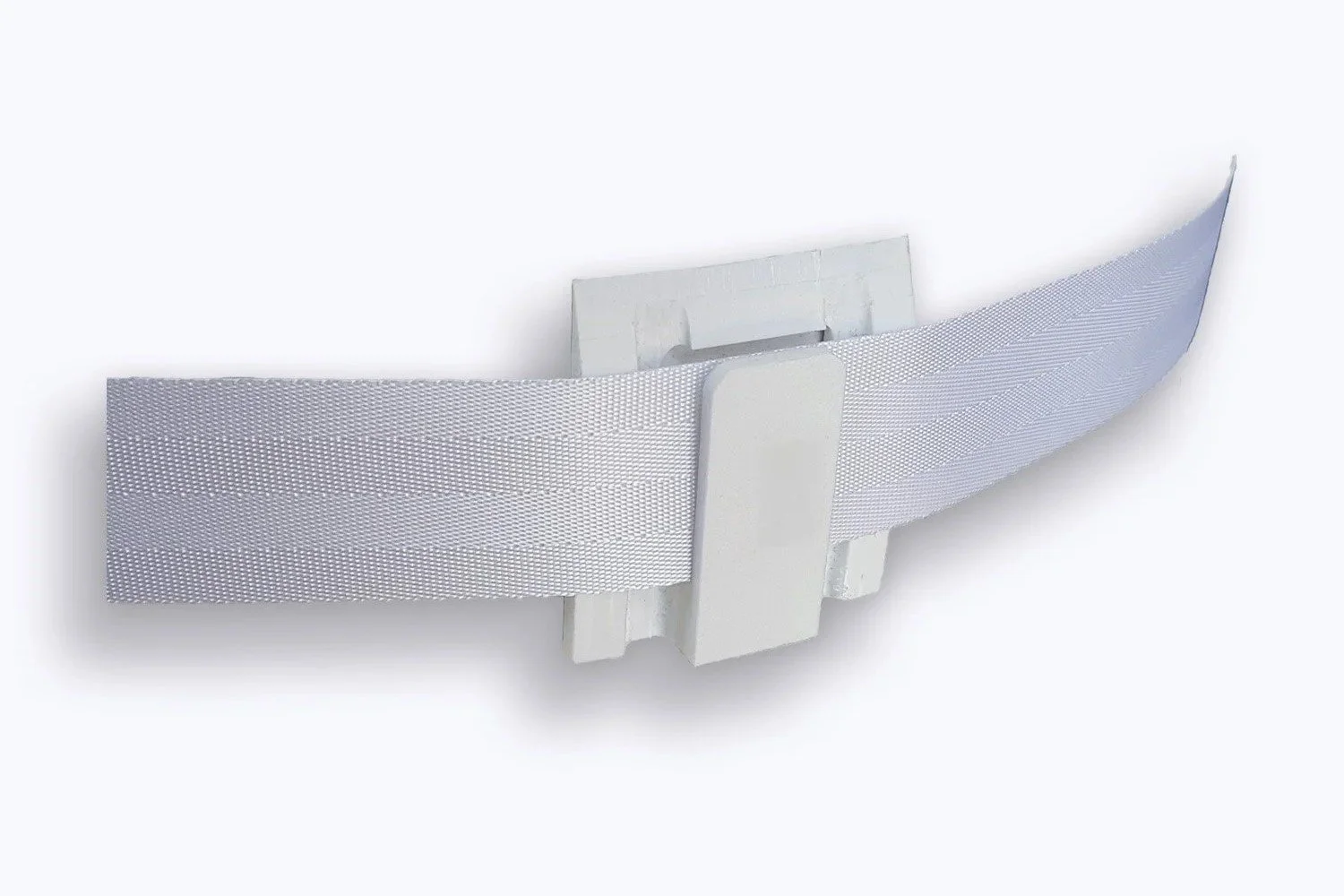

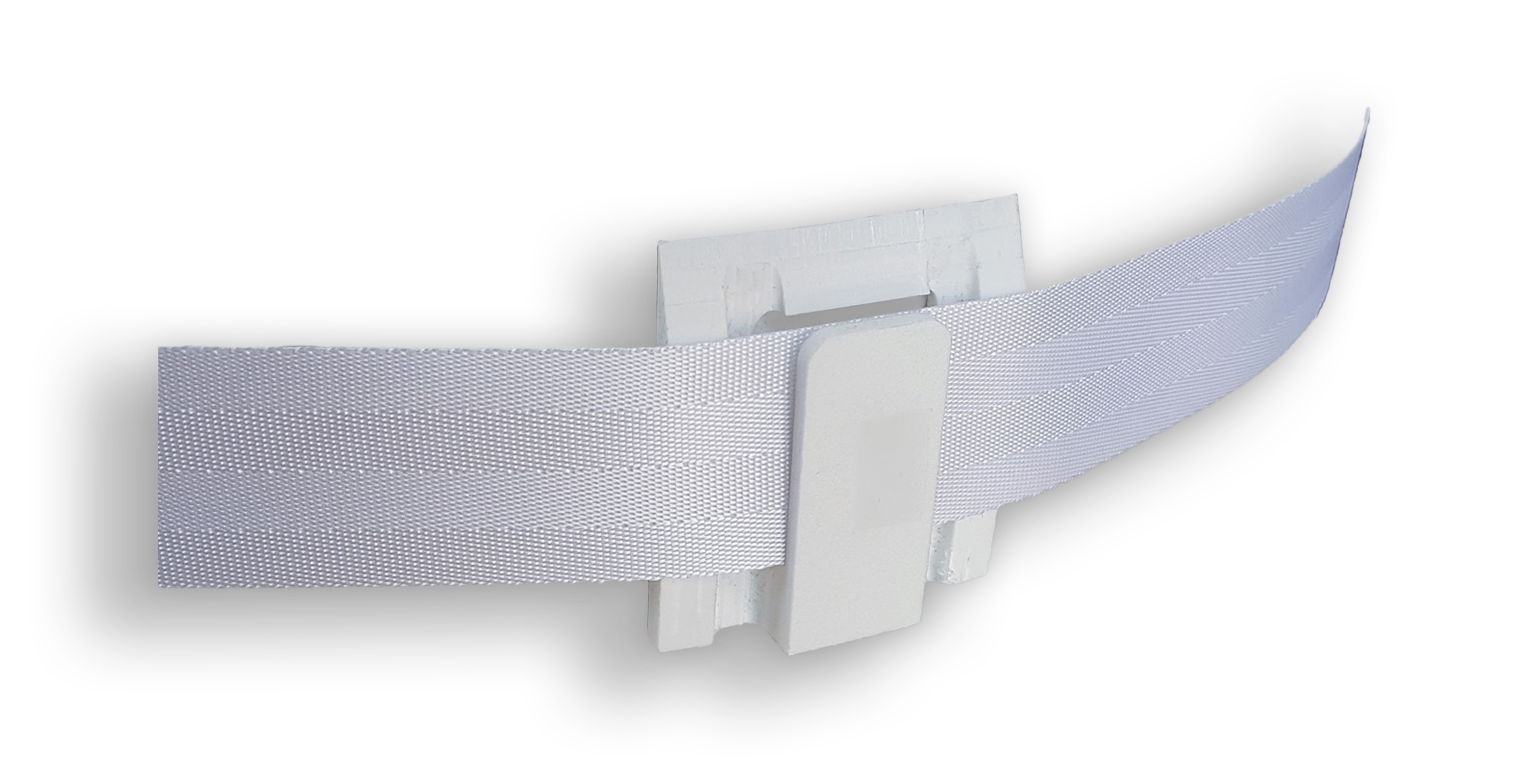

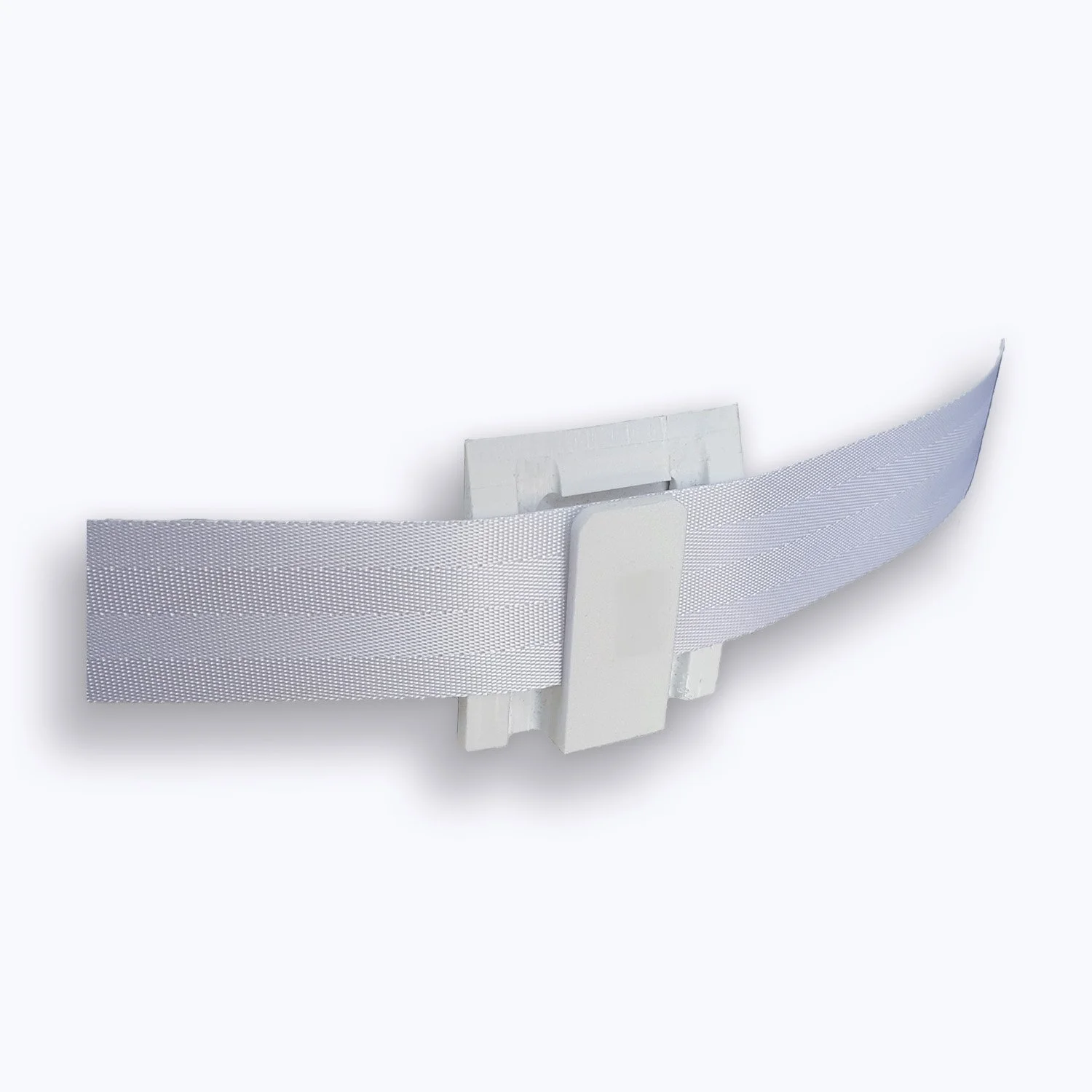

Strap Hooks help keep WindBands securely positioned on tower structures, ensuring reliable canister/shroud protection.
Lasso Loops and Installation Kits are sold separately to provide flexibility in your ordering.

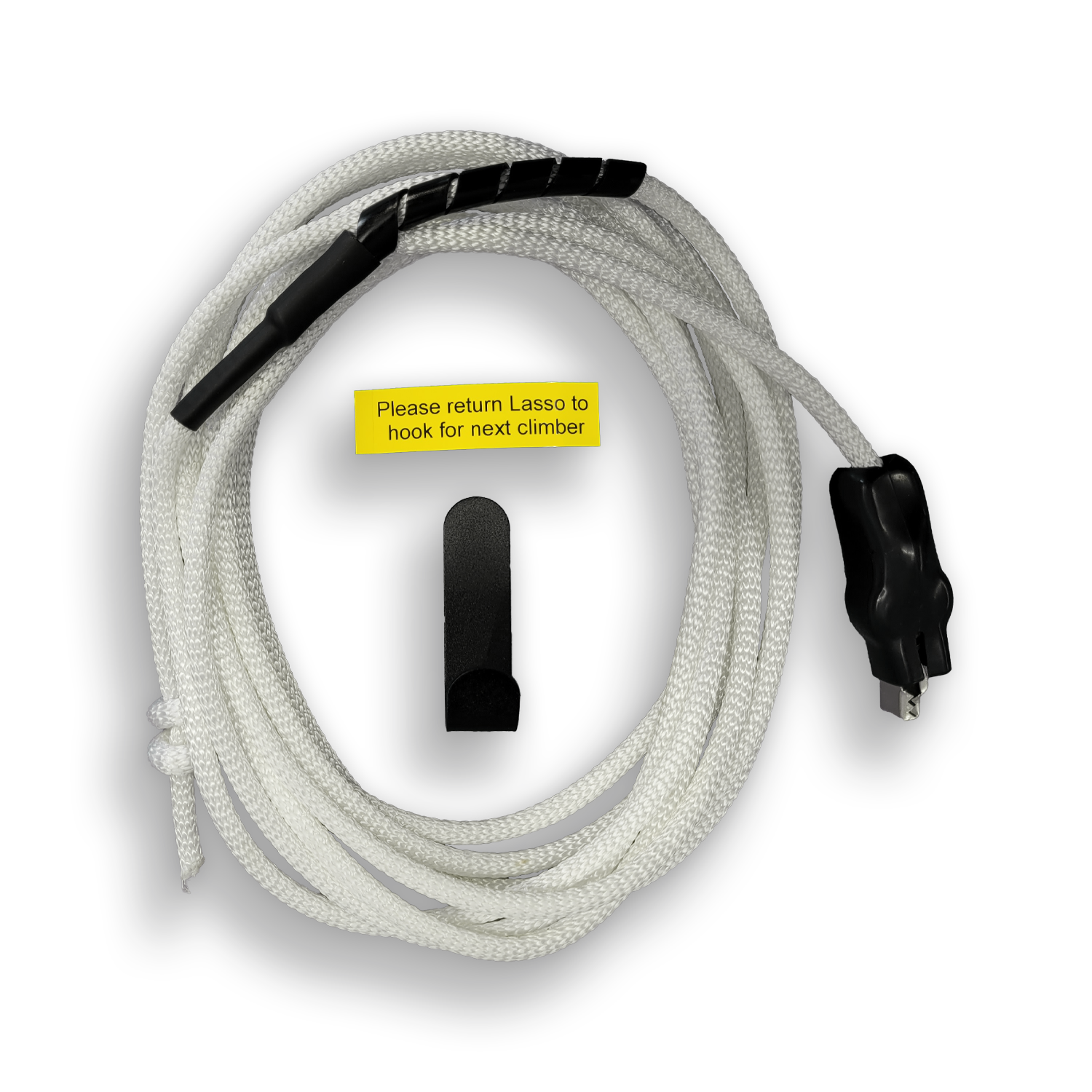

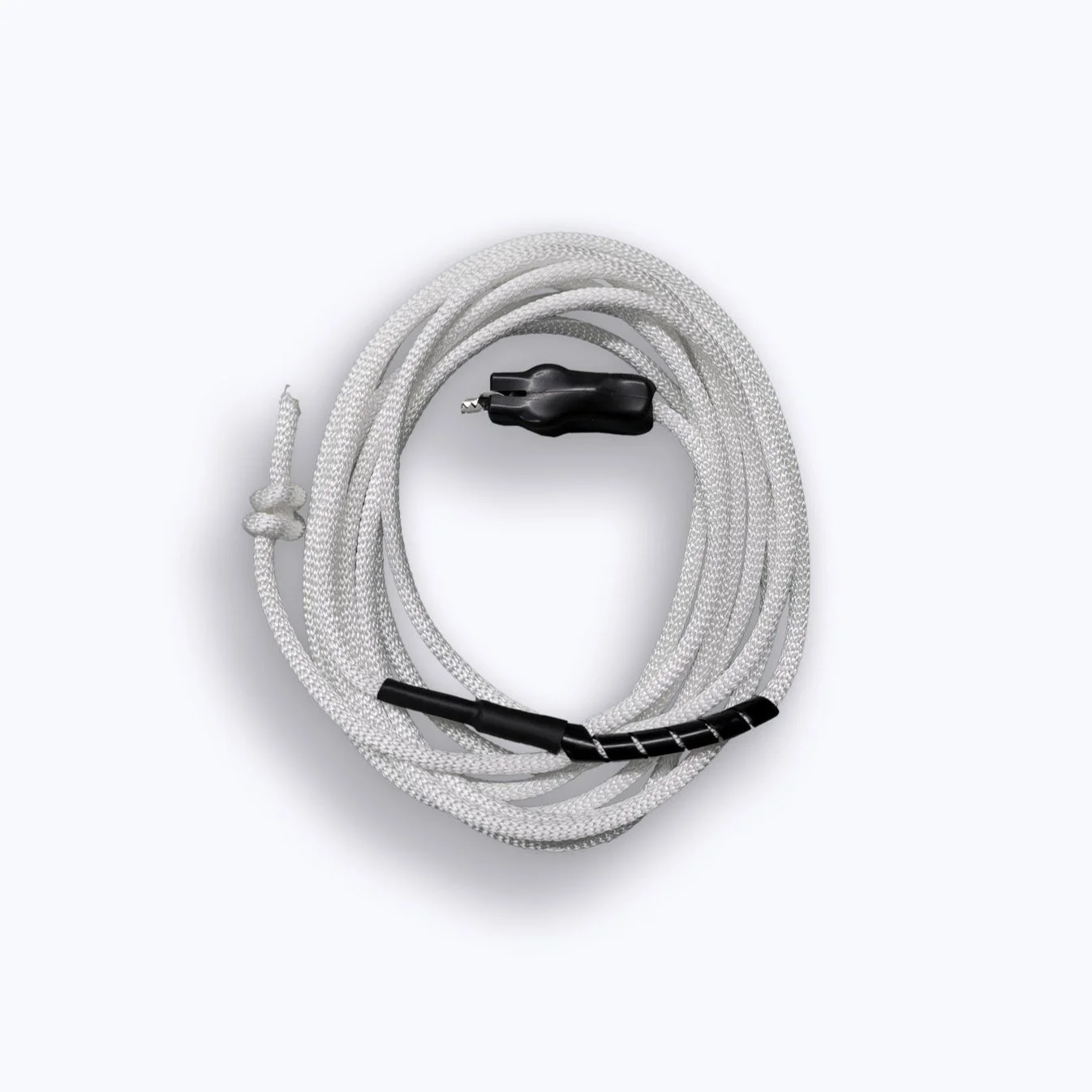

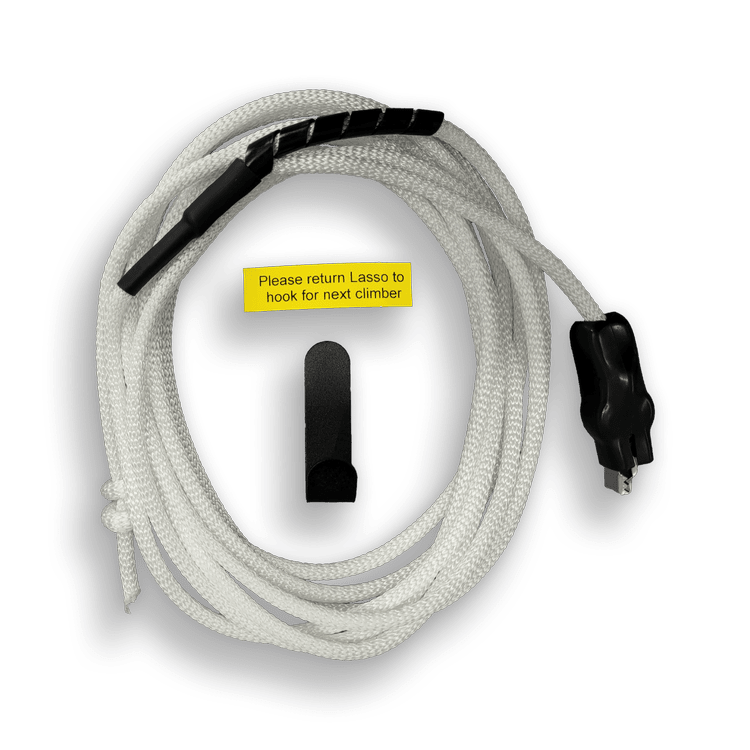

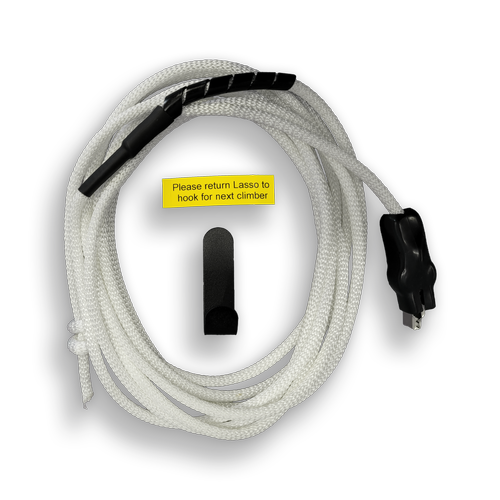

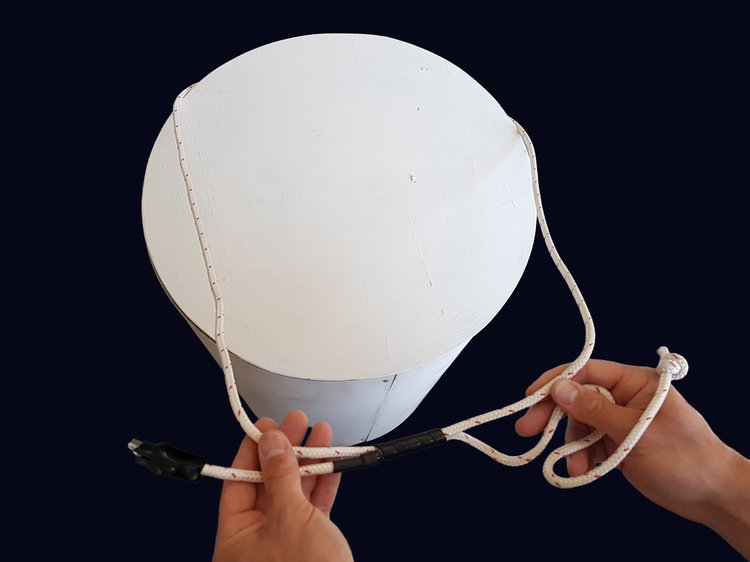

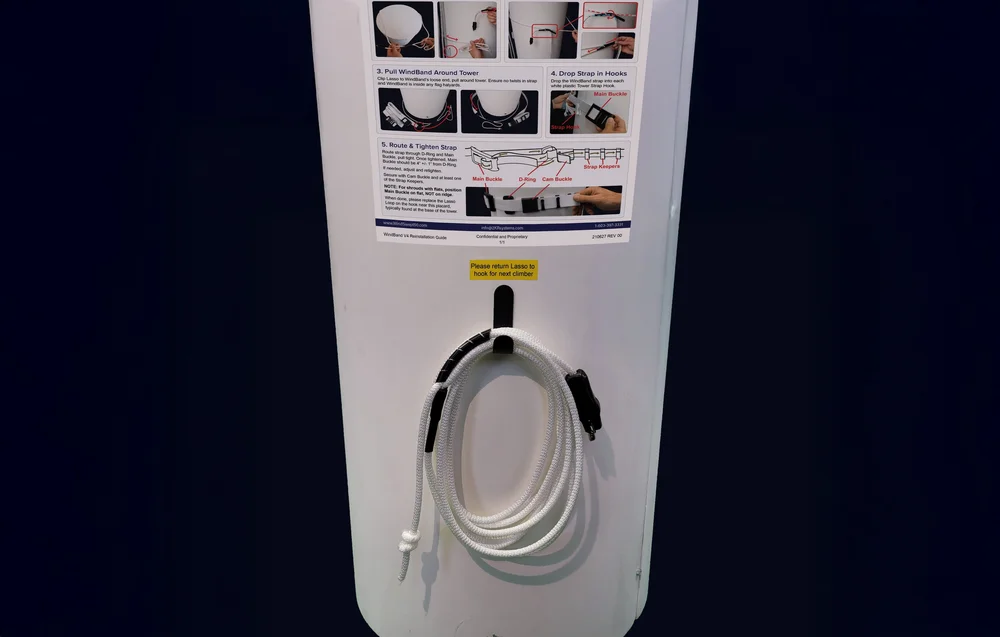

We strongly recommend purchasing one Lasso Loop per tower, as these components remain permanently installed at each site for ongoing flag changes and maintenance.

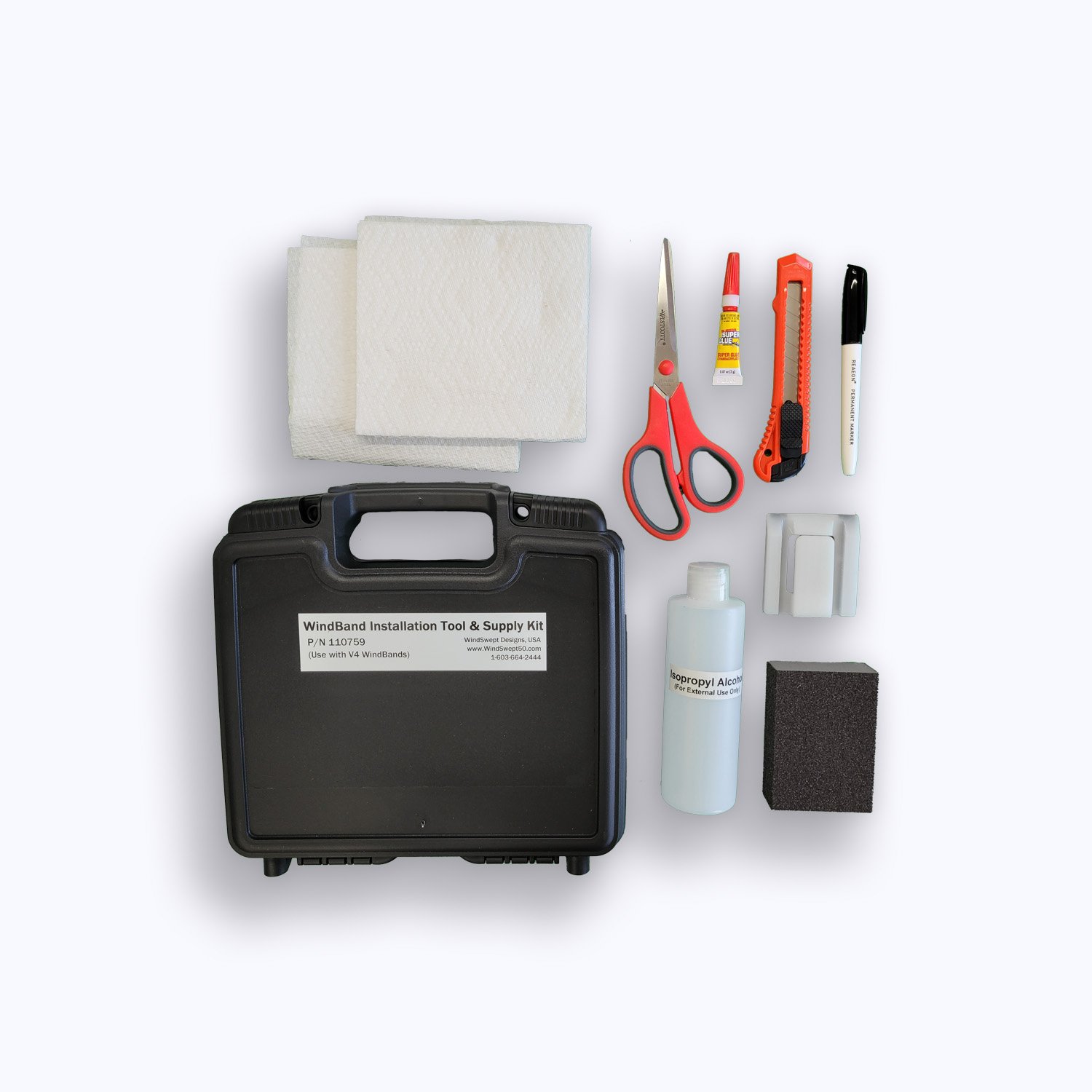

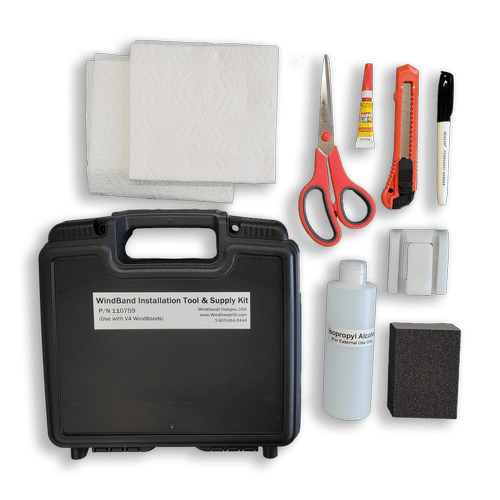

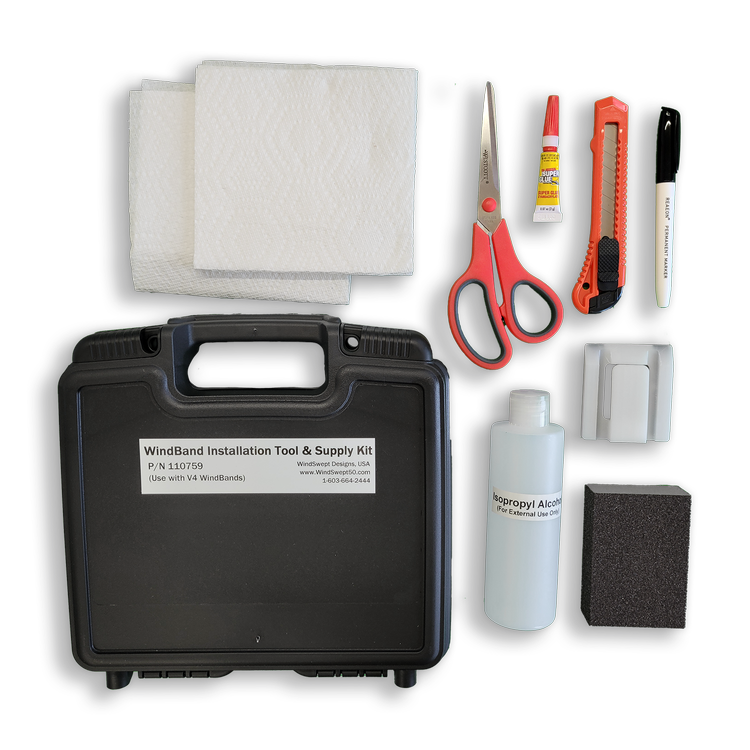

While highly recommended for installations, Installation Kits are designed for reuse and can be transported between various tower sites.
| P/N | Description | Notes |
|---|---|---|
| 110757 | WindBand, Standard | 18" (46cm) to 50" (127cm) diameter |
| 110758 | WindBand, Long | >50" (127cm) to 70" (178cm) diameter |
| 110847 | WindBand, Extra Long | >70" (178cm) to 100" (254cm) diameter |
| 110759 | Installation Tool Kit | Recommended. Includes all V4 Windband installation components |
| 110801 | Lasso Loop, Standard | Recommended. One per 18" to 50" dia. tower |
| 110809 | Lasso Loop, Long | Recommended. One per >50" to 70" dia. tower |
| 110873 | Lasso Loop, Extra Long | Recommended. One per >70" to 100" dia. tower |
| 110799 | Strap Hook | Includes peel and stick backing |
1. Review tower drawings or as-built measurements to determine:
a. The number of antenna shroud bays
b. Shroud/Canister diameter
c. Shroud length
2. Refer to the WindBand Size Calculator to determine the correct size and amount of WindBands needed for your tower.
3. Order the number of WindBand needed for the tower.
4. Remember to order a WindBand Installation Toolkit and Lasso Loop! 1 per tower is highly recommended for the perfect installation.

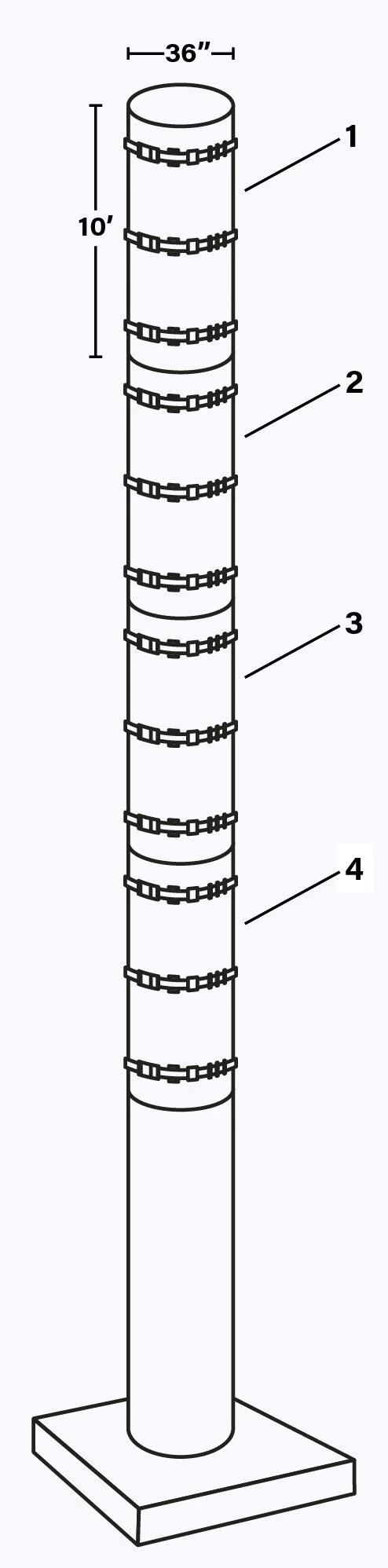

1. The following tower has 4 antenna shroud bays. The shrouds all measure 36” in diameter by 10 ft long.
2. Using the WindBand Size Calculator, you will see that the Standard Length WindBand is for antenna shroud bays 18” to 50” in diameter, and 3 WindBands are needed for a shroud that is 8’ to 12’ long.
3. Order (12) Standard Length WindBands (P/N 110757).
4. Order (1) Standard Length Lasso Loop (P/N 110801).
5. Order (1) WindBand Installation Toolkit (P/N 110759).
